Gantries are designed for long travel paths and highest speeds in high repeatability applications
- High accuracy due to rigid construction
- Freely configurable in length
- With a 2- or 3-axis gantry, a wide variety of applications can be realized in the space, and over long distances, without having to install separate conveyor lines or the like
- In combination with, for example, a machine tool, cycle-time-parallel tasks can be implemented in separate plant sections. A 3-axis gantry can be used, for example, to insert and transport the manufactured parts during assembly processes
- Smooth running due to adjustable precision guides
- Cable carriers can be installed directly
- Connection via solid steel construction columns
- Dirt-resistant roller guide system with high load ratings
- Drive combination: servo motor / gearbox / pinion
Options of TECHTORY-xy- und -xyz-portals:
- Divisible for longer travels
- Custom painting
- Additional motion axes can be attached below the horizontal axis
- Use of individual gripping systems
- Integration of central lubrication
- Media feed-through: electric / pneumatic / hydraulic
Options of TECHTORY-xy- und -xyz-portals:
- Divisible for longer travel paths
- Custom paintwork
- Additional motion axes can be attached below the horizontal axis
- Use of individual gripping systems
- Integration of central lubrication
- Media feed-through: electric / pneumatic / hydraulic

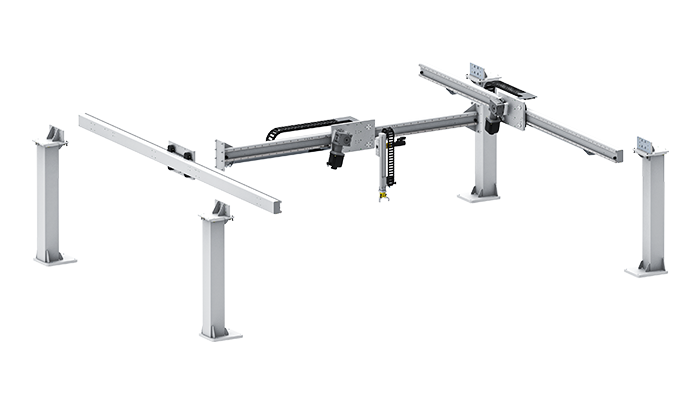

| 1 | X-axis | |
| 2 | Y-axis | |
| 3 | Z-axis | |
| 4 | Tripod | |
| 5 | Drive motor | |
1
2
3
4
5
1
X-axis
2
Y-axis
3
Z-axis
4
Tripod
5
Drive motor
| 1 | X-axis | |
| 2 | Y-axis | |
| 3 | Z-axis | |
| 4 | Tripod | |
| 5 | Drive motor | |
1
2
3
4
5
1
X-axis
2
Y-axis
3
Z-axis
4
Tripod
5
Drive motor
1
2
3
4
5
1
X-axis
2
Y-axis
3
Z-axis
4
Tripod
5
Drive motor

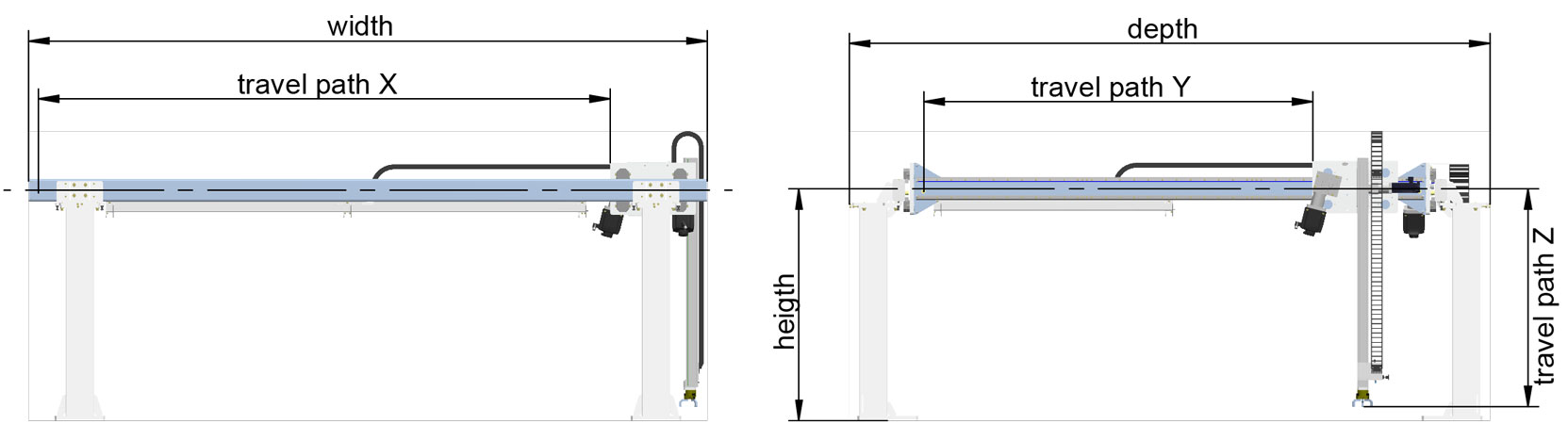

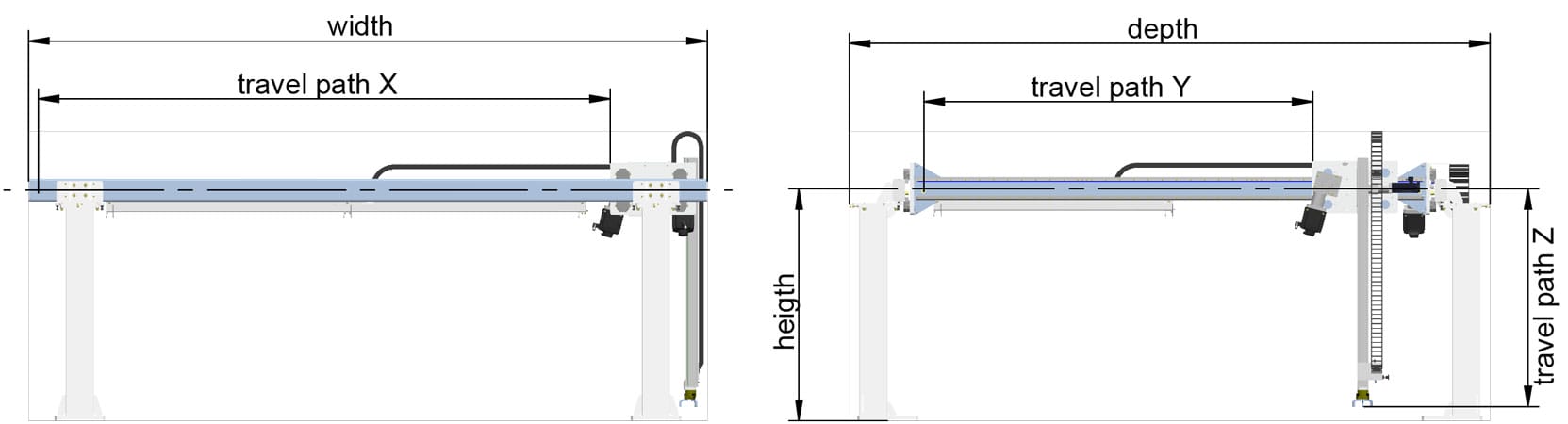

Technical features
| Axle height | 1.5 m – 3 m |
| Workpiece weight | up to 30 kg |
| Traversing speed | 1.6 m/s |
Technical features
| Axle height | 1.5 m – 3 m |
| Workpiece weight | up to 30 kg |
| Traversing speed | 1.6 m/s |
Technical features
| Axle height | 1.5 m – 3 m |
| Workpiece weight | up to 30 kg |
| Traversing speed | 1.6 m/s |
