TECHTORY-feeder-storage

Receiving unmachined and finished parts

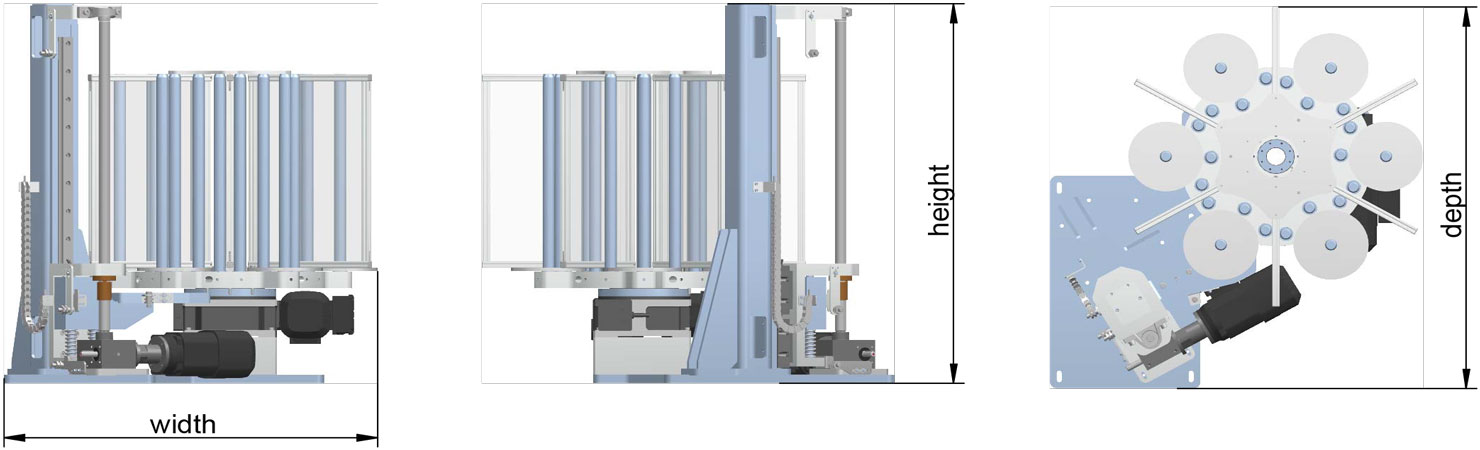

The TECHTORY-feeder-storage is scalable in a grid dimension of 50 mm
Due to the grid dimension of 50 mm, the storage modules can be integrated into the cell-systems without adaptation
Can be used as finished or unmachined part storage only or also as unmachined and finished part storage in one system
Loading with unmachined parts or unloading of finished parts is possible during the process – due to spatial separation of operator and machine
No slipping of the workpieces during stacking, as they are held in place by external or internal guides on or in the part of the stack
Access to the operator side is prevented by a complete safety door from the TECHTORY-floor-cell or a light barrier with an appropriate safety distance
Division and number of parts individually customizable

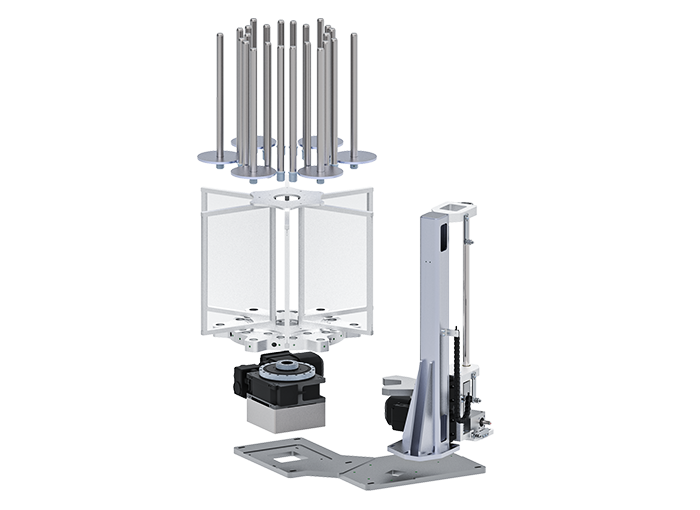

By means of a lifting unit, the part to be removed is always presented to the robot or handling unit in the same position
Poka-yoke by contours in the inner or outer guides prevent the wrong loading into the Storage unit

1

2

3

4

1

2

3

4

1

2

3

4
