TECHTORY-x-portal

Traversing axes are used in a wide range of applications and industries

  • High accuracy due to rigid construction
  • Freely configurable in length
  • Smooth running due to adjustable precision guides
  • Cable carriers can be installed directly
  • Shortest changeover times due to high accelerations
  • Low-noise due to quiet drives and energy chains
  • Connection via solid steel construction columns
  • Dirt-resistant roller guide system with high load ratings
  • Drive combination: servo motor / gearbox / pinion

Options of TECHTORY-x-portals:

  • Divisible for longer travel paths
  • Custom paintwork
  • Carriage positions: lying, standing, hanging
  • Use of individual gripping systems
  • Integration of central lubrication
  • Media feed-through: electric / pneumatic / hydraulic

Options:

  • Divisible for longer travels
  • Custom painting
  • Carriage positions: lying, standing, hanging
  • Use of individual gripping systems
  • Integration of central lubrication
  • Media feed-through: electric / pneumatic / hydraulic
1 Tripod
2 Traversing axis
3 Drive motor
1
2
3

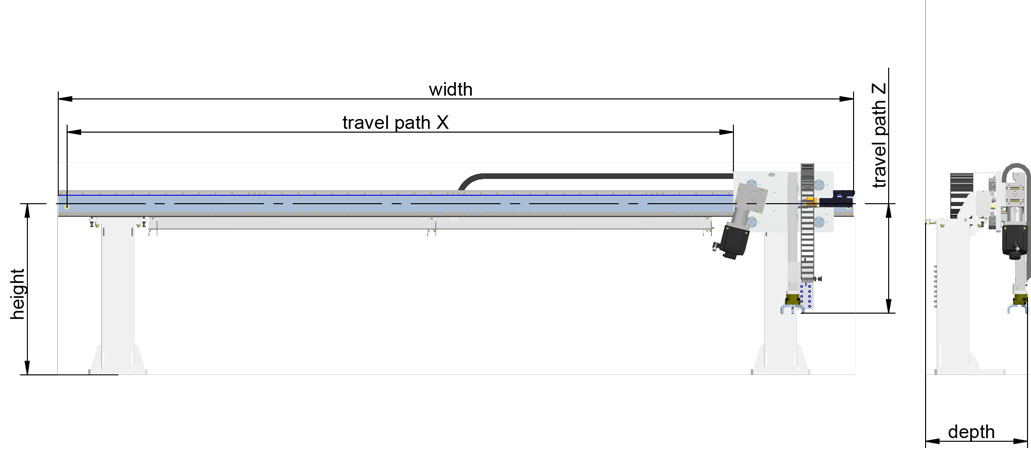

techtory explosionszeichnung x portal
1

Tripod

2

Traversing axis

3

Drive motor

1 Tripod
2 Traversing axis
3 Drive motor
1
2
3
techtory explosionszeichnung x portal
1

Tripod

2

Traversing axis

3

Drive motor

1
2
3
techtory explosionszeichnung x portal
1

Tripod

2

Traversing axis

3

Drive motor

1 Tripod
2 Traversing axis
3 Drive motor

Technical features

Axle height 1,5 m – 3 m
Workpiece weight up to 30 kg
Length 1.2 m – 6 m or longer through divisible base supports
Traversing speed 1.6 m/s

Technical features

Axle height 1,5 m – 3 m
Workpiece weight up to 30 kg
Length 1.2 m – 6 m or longer through divisible base supports
Traversing speed 1.6 m/s

Technical features

Axle height 1,5 m – 3 m
Workpiece weight up to 30 kg
Length 1.2 m – 6 m or longer through divisible base supports
Traversing speed 1.6 m/s

portal-systems

portal-systems

portal-systems
