Feeding parts into processes with automated workpiece handling

  • The TECHTORY-drawer-storage is scalable in a grid dimension of 50 mm
  • Due to the grid dimension of 50 mm, the storage modules can be integrated into the cell-systems without adaptation
  • TECHTORY-drawer-storage is equipped with double-sided pullout. The drawers can thus be opened towards the operator and the unloading area
  • Ergonomic arrangement of the bottom and top drawer
  • Depending on requirements, the number and position of the drawers can be changed, e.g. to achieve more loading height
  • The drawers are designed without a component holder inside, so that an inlay can be inserted depending on the component
  • The TECHTORY-drawer-storage can be used in two basic variants, differing only in their type of access and security technology
  • The drawers are equipped with solenoid interlocks to ensure operator and process protection. The operator protection can be executed in two options

Options of the TECHTORY-drawer-storage:

  • Opening of all drawers is prevented by a complete protective door from the TECHTORY-floor-cell
  • The opening of the individual drawers is protected by a safety locking device per drawer against opening towards the operator
1 Configurable drawer
2 Filling
3 Frame
1
2
3
techtory explosionszeichnung drawer storage
1

Configurable drawer

2

Filling

3

Frame

1 Configurable drawer
2 Filling
3 Frame
1
2
3
techtory explosionszeichnung drawer storage
1

Configurable drawer

2

Filling

3

Frame

1
2
3
techtory explosionszeichnung drawer storage
1

Configurable drawer

2

Filling

3

Frame

1 Configurable drawer
2 Filling
3 Frame

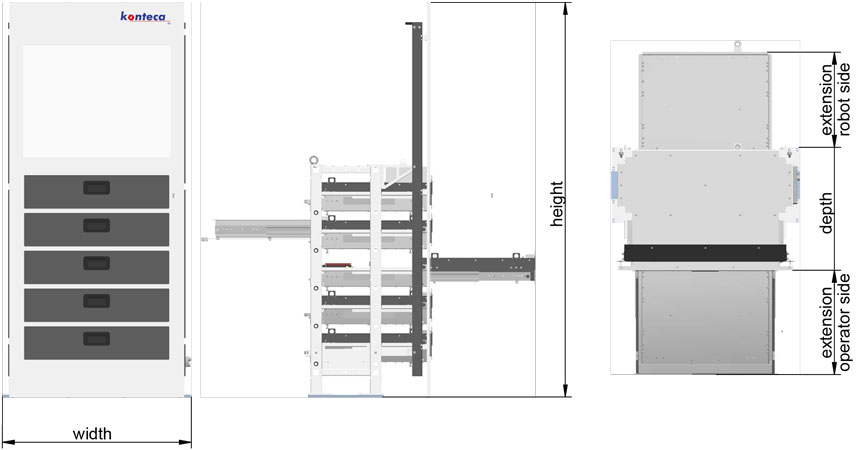

Technical features

Drawer loading area (W/H/D) max. 700 x 130 x max. 550 mm
Loading per drawer approx. 200 kg
Robot side pullout width approx. 550 mm
Extension side operator side approx. 600 mm

Technical features

Drawer loading area (W/H/D) max. 700 x 130 x max. 550 mm
Loading per drawer approx. 200 kg
Robot side pullout width approx. 550 mm
Extension side operator side approx. 600 mm
