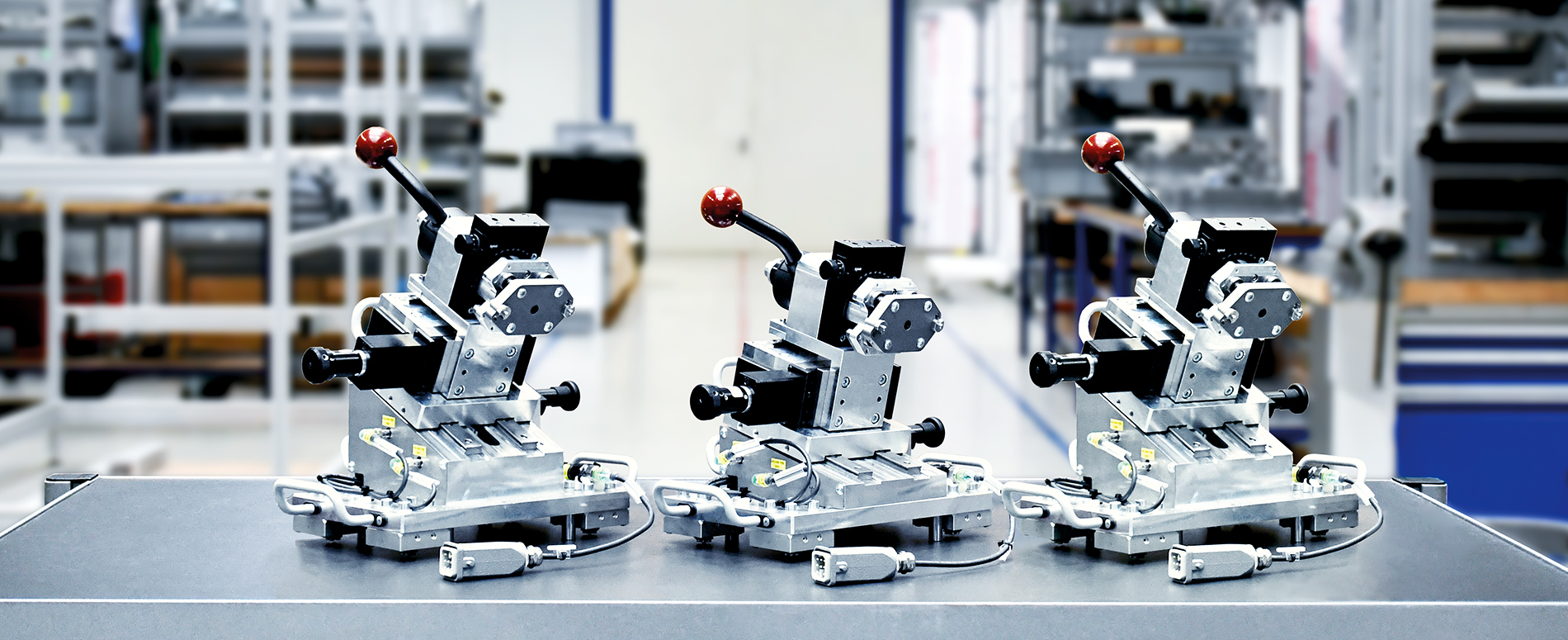

Your specialist for electromechanical subassembly production
Benefit from the continuous development and training of our specialist staff.
We also manufacture and assemble high-quality assemblies based on your specifications in the fields of electromechanics and mechatronics.
Our assembly department produces complete or partially assembled electromechanical assemblies, system assemblies or machine components from a wide variety of components, for example from electronics, electrical engineering, mechanical production or pneumatics.
Optical testing devices
Test device for sealing ring assembly
Test units with vision sensor
Pre-assembly of optical test units
Ready-to-install assembly for electric forklift truck
Steering angle limiter as separate, ready-to-install subassembly
Optical testing devices
Test device for sealing ring assembly
Test units with vision sensor
Pre-assembly of optical test units
Ready-to-install assembly for electric forklift truck
Steering angle limiter as separate, ready-to-install subassembly
Reference projects
Optical test devices
Test device for sealing ring assembly
This test device guarantees a low-cost, easy-to-use as well as reliable visual inspection of the presence of sealing rings. The actual inspection is performed with a vision sensor. The sensor takes an image and compares it with a reference image.
This subassembly comes from our own development and production. Programming and commissioning takes place at our premises.
It is delivered functionally tested.
Test units with vision sensor
Pre-assembly of optical test units
The camera units, each with a vision sensor and four laser pointers, are used to facilitate assembly and visually inspect four screwing points during series assembly of automotive cross-members.
Functions:
- Displaying the respective screw position on the component by means of a laser pointer
- Monitoring of the correct application position of the screwdriver and subsequent release for screwdriving
- First check: “Disc present
- Second check: “Screw present
Ready-to-install assembly for electric forklift truck
Steering angle limiter as separate, ready-to-install subassembly
The steering angle limiter is a mechanical lock on the steering unit used on forklifts in high-bay warehouses.
It limits the steering angle deflection to max. 3° to the right and left. Unintentional turning of the steering angle is thus prevented to avoid the risk of an accident.
The design was provided by the customer. Techtory delivers tested, ready-to-install subassemblies to the assembly line.
