Project planning

Your direct path to success

With upstream project planning, you gain security, reliability and always achieve cost optimization in the end.

Through detailed consultation and joint solution finding, this procedure creates optimal conditions for subsequent CAD design as well as electrical and software planning. Undesirable developments can certainly be avoided.

Sequence steps:

Definition of objectives Development of alternative solutions Presentation of results Joint concept selection

Advantages:

  • Time and cost savings
  • Productivity increase
  • Minimized risk factors
  • You have an influence on the quality and price of the plant

After completion of the project planning phase, we will be happy to provide you with an offer for the design.

Sound project planning with detailed customer consultation and finding solutions together is the first step for us in the implementation of high quality standards.

With our project planning, you gain security, reliability and always achieve cost optimization in the end.

This procedure creates optimal conditions for subsequent CAD design as well as electrical and software planning. Undesirable developments can certainly be avoided.

Advantages:

  • Time and cost savings
  • Productivity increase
  • Minimized risk factors
  • You have an influence on the quality and price of the plant

After completion of the project planning phase, we will be happy to provide you with an offer for the design.

Project planning process

aufnahme istzustand

Recording of actual state with target definition

Together with the customer, our project managers record the current status and define targets, such as cost frameworks or possible production processes.

In the run-up to the upcoming project, we attach great importance to comprehensive customer consultation. With our experience from the most diverse areas of automation, we recognize execution problems at an early stage and suggest alternative solutions.

The goal is an effective error prevention strategy right from the start.

Elaboration of alternative solutions

ausarbeitung loesungsstrategie

What paths lead to the goal

For the development of special solutions, we work out various solution alternatives for you with the resulting advantages and disadvantages, also with regard to economic efficiency.

We check to what extent standardized elements can be used. Only where necessary, individual components are elaborated. This results in unbeatable advantages:

  • Efficient design solutions
  • Low development and manufacturing costs
  • High operational reliability of the installation

Presentation of the results, joint concept selection and final documentation preparation

praesentation ergebnisse

Together to the optimal solution

Taking into account economy, user-friendliness, flexibility, ergonomics and space requirements, etc., we will present you with the advantages and disadvantages of all the variants worked out.

After presenting all the alternatives, we work with you to select the solution that best meets your individual objectives.

Finally, you will be given a meaningful document with the selected solution concept.

Your customer benefit

Your customer benefit

Clear advantages

  • Increase your decision-making confidence
  • Solutions are transferred to the design
  • You have an influence on the quality and price of the equipment
  • Time and cost savings
  • Comprehensive documentation
  • Productivity increase
  • Precisely calculable costs
  • Transparent cost breakdown
  • Minimized risk factors

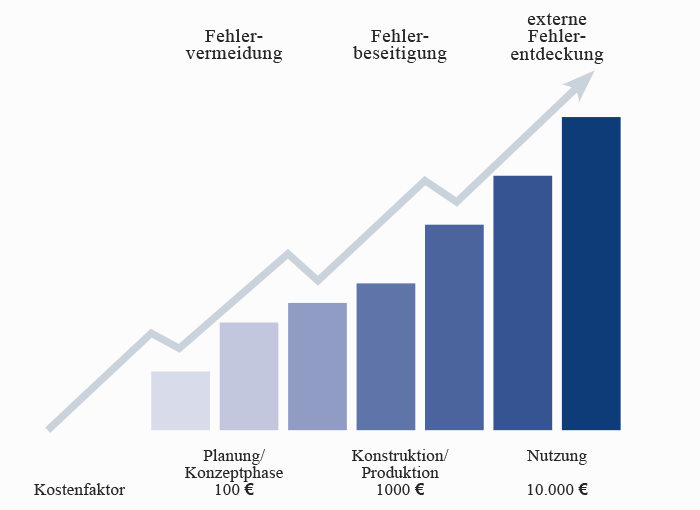

Error prevention strategy

Error prevention strategy

The earlier a source of error is detected, the more favorable is its elimination

Many customers are deterred by the higher initial costs associated with project planning. The planning phase is absolutely crucial for the quality of the product, because it is here that trend-setting concepts are developed.

If mistakes are made in the concept during this phase, they can only be rectified later at very high financial cost.

With our project planning, we pursue the error prevention strategy already in the concept and planning phase. You as a customer are thus on the safe side and now receive professionally prepared solution and concept proposals.

Follow-up costs and working hours are minimized in equal measure. The result is an optimal cost-benefit ratio.

Reference projects

Project planning of a Pick & Place plant

Project planning of a “Pick & Place” plant

Task:

Development of solution concepts for an automation system for gluing and pressing metal adhesive strips onto epoxy resin plates.

Solution variants:

Different handling variants were investigated, including the use of small industrial robots. To improve cycle time and economy, the use of two SCARA’s is recommended. A sophisticated roller/pull-off system realizes the operationally safe gripping and releasing of the metal adhesive strips.

Project planning of a plant concept for the production of multilayer floor panels

techtory projektierung anlagekonzept mehrschicht bodenblatten

Task:

Concept development for pre-assembly of floor frames and subsequent application of various flooring layers.

Solution variants:

Pre-assembly of the floor frames is performed manually. After the automated transfer to Station 2, the adhesive is applied automatically. The subsequent covering with release film, fiberglass mat and PVC covering is partially automated.
