• techtory gripping systems

TECHTORY-gripping-systems

Safe handling of your workpieces

  • Grippers are used wherever workpieces have to be gripped and transported
  • The housing is made of high-strength aluminum and is thus robust and solid at the same time

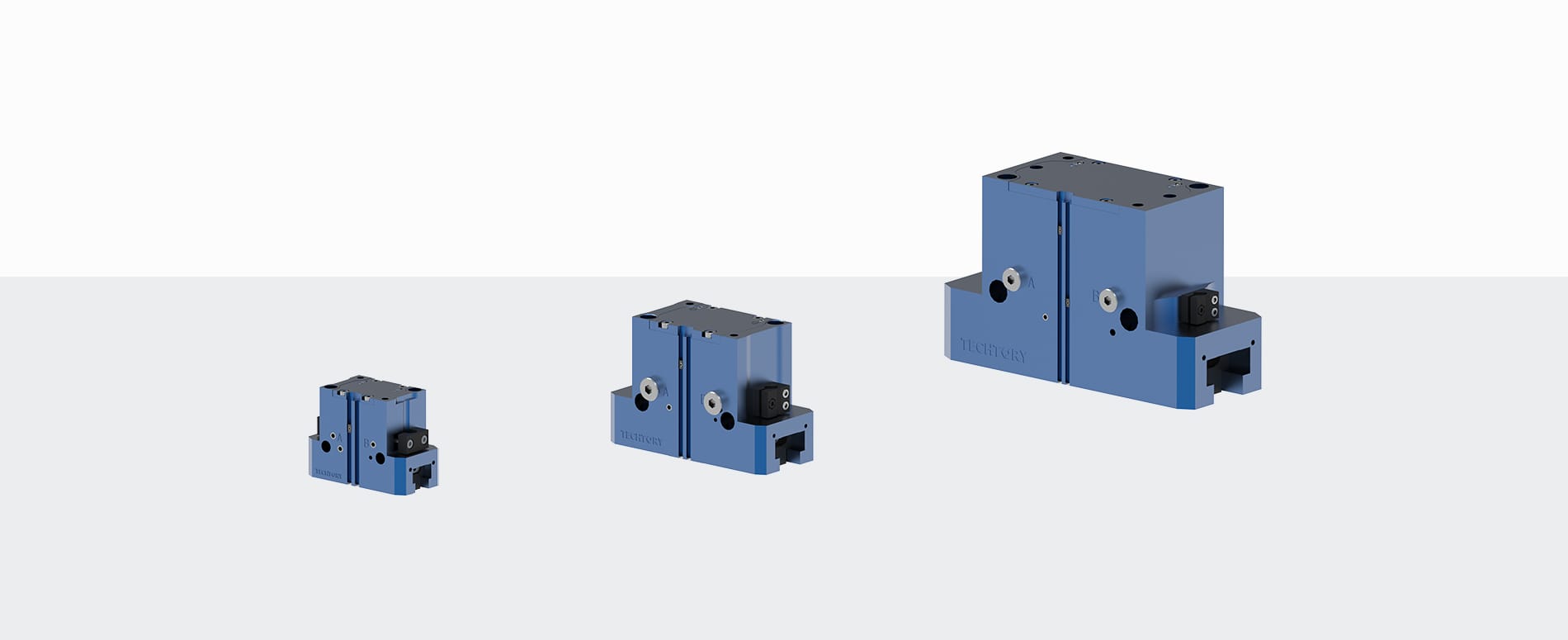

  • Thanks to different sizes (64 – 100 – 160) a wide spectrum can be covered
  • Optionally, the grippers can be equipped with internal or external force retention

Options:

  • Expandable from two to four storage cells
  • Multiple lifting units can be used to optimize the cycle time
  • Quantity recording by means of weighing cells
  • Monitoring by means of fill quantity indicator

Technical features

Size 64 100 160
Dimensions x/y/z (mm) 76 x 36 x 38 120 x 50 x 54 192 x 72 x 76
Stroke per jaw (mm) 6 10 16
With gripping force safety device No No No
Theor. closing force at 0 mm finger length (N) 371 1026 2742
Theor. opening force at 0 mm finger length (N) 401 1119 2848
Nominal working pressure (bar) 6 6 6
Sealing air pressure available available available

1 Trolley
2 Docking station
3 Cover
4 Lifting unit
1
2
3
4
techtory explosionszeichnung palletizing storage
1

Trolley

2

Docking station

3

Cover

4

Lifting unit

techtory gripping
techtory cad palletizing storage
