Deburring and brushing station for planetary carriers

Workpiece:

Planetary carriers

Task:

Efficient deburring of bores and all additional burrs on planetary carriers

Solution:

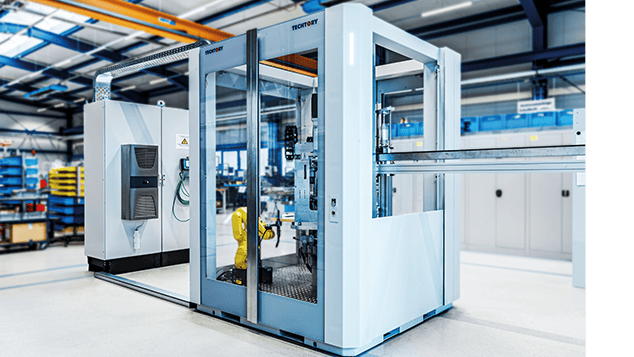

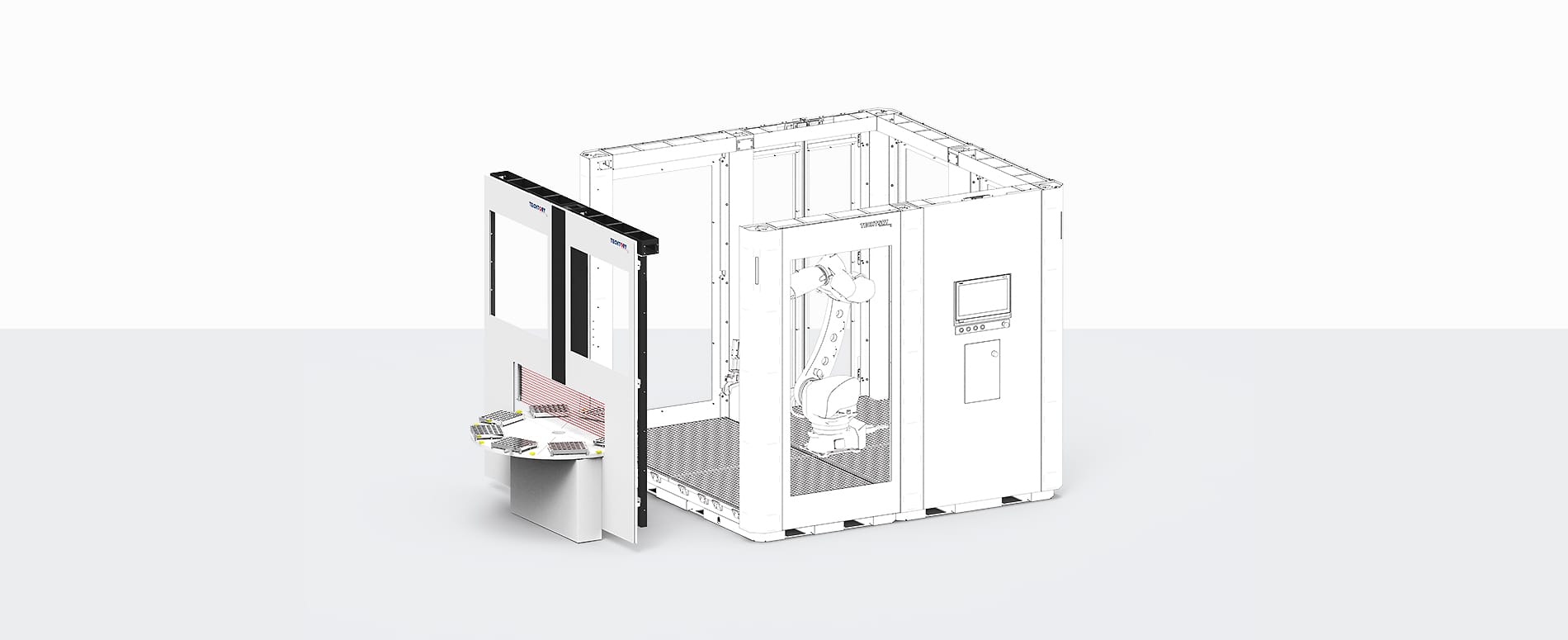

Based on our TECHTORY-floor-cell with rotary indexing table, two planetary carriers are each machined simultaneously in cycle. In this process, the mounting bores of the planetary carriers are deburred in a single operation and all additional burrs are removed in the subsequent stations.

The use of our standardized products ensures an extremely economical machining process.

Customer benefits:

Efficient machining through rotary indexing table and parallel machining of two planetary carriers. Machining of non-circular holes by robot. Automatic loading and unloading by handling system.
